Brake Drum Gauge: A One-stop Solution From Wear Detection to Brake Adjustment
1. Why do we need a brake drum gauge?
The brake drum is the core component of the drum brake system. It is subjected to friction and high temperature for a long time. The wear or loss of roundness of the inner diameter will cause abnormal brake noise, reduced braking force or even failure, which directly threatens driving safety. It is difficult to judge the degree of slight wear with the naked eye, and the brake drum gauge is a professional tool born for this purpose. It can quickly detect the inner diameter size, roundness error and wear limit of the brake drum with micron-level accuracy, helping maintenance personnel to scientifically judge whether the brake drum needs to be repaired or replaced. It can be called a "physical examination expert" of the automobile braking system.
2. What are the advantages of WT04B4167 compared with the old brake drum gauge?
Tool positioning upgrade: a versatile tool from detection to adjustment

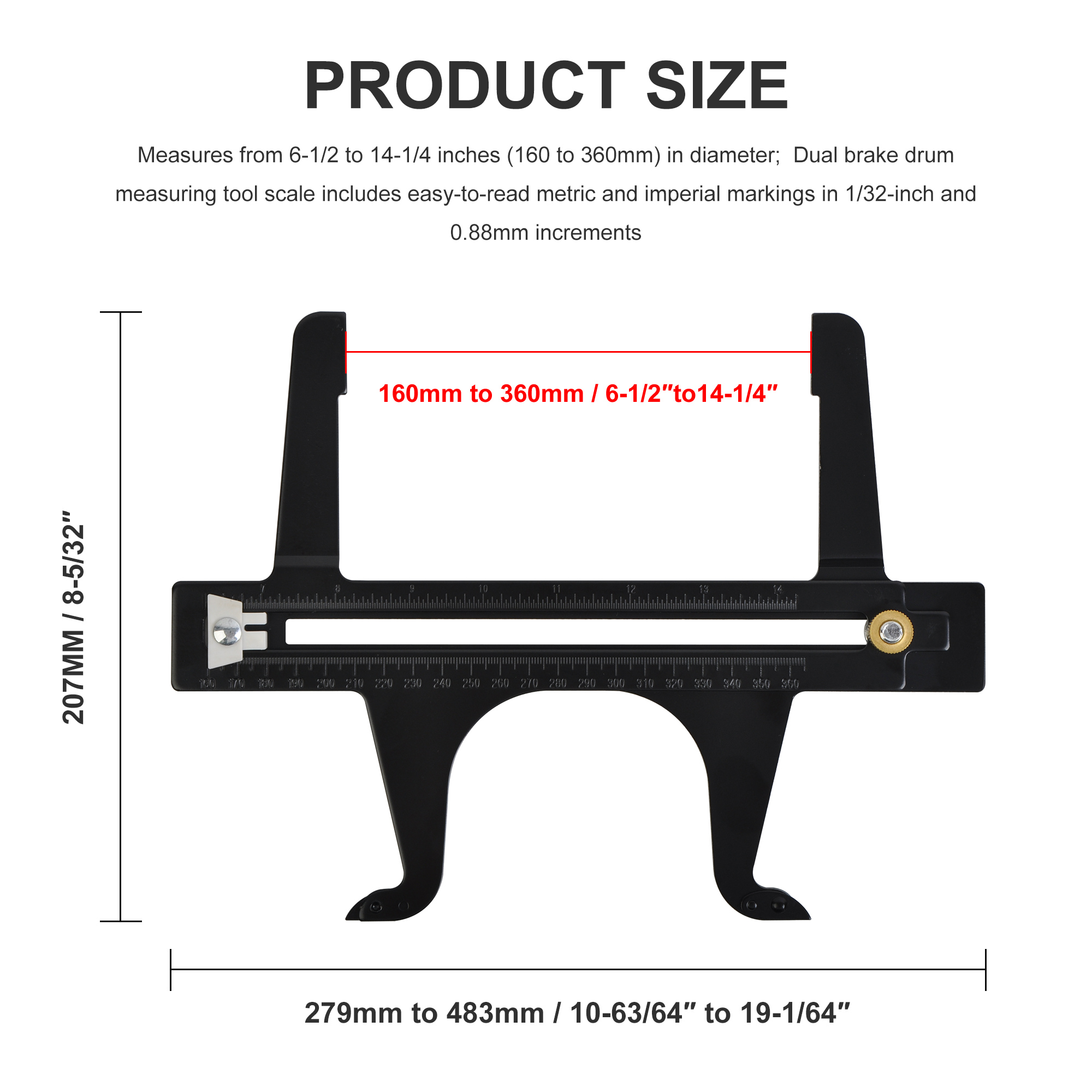

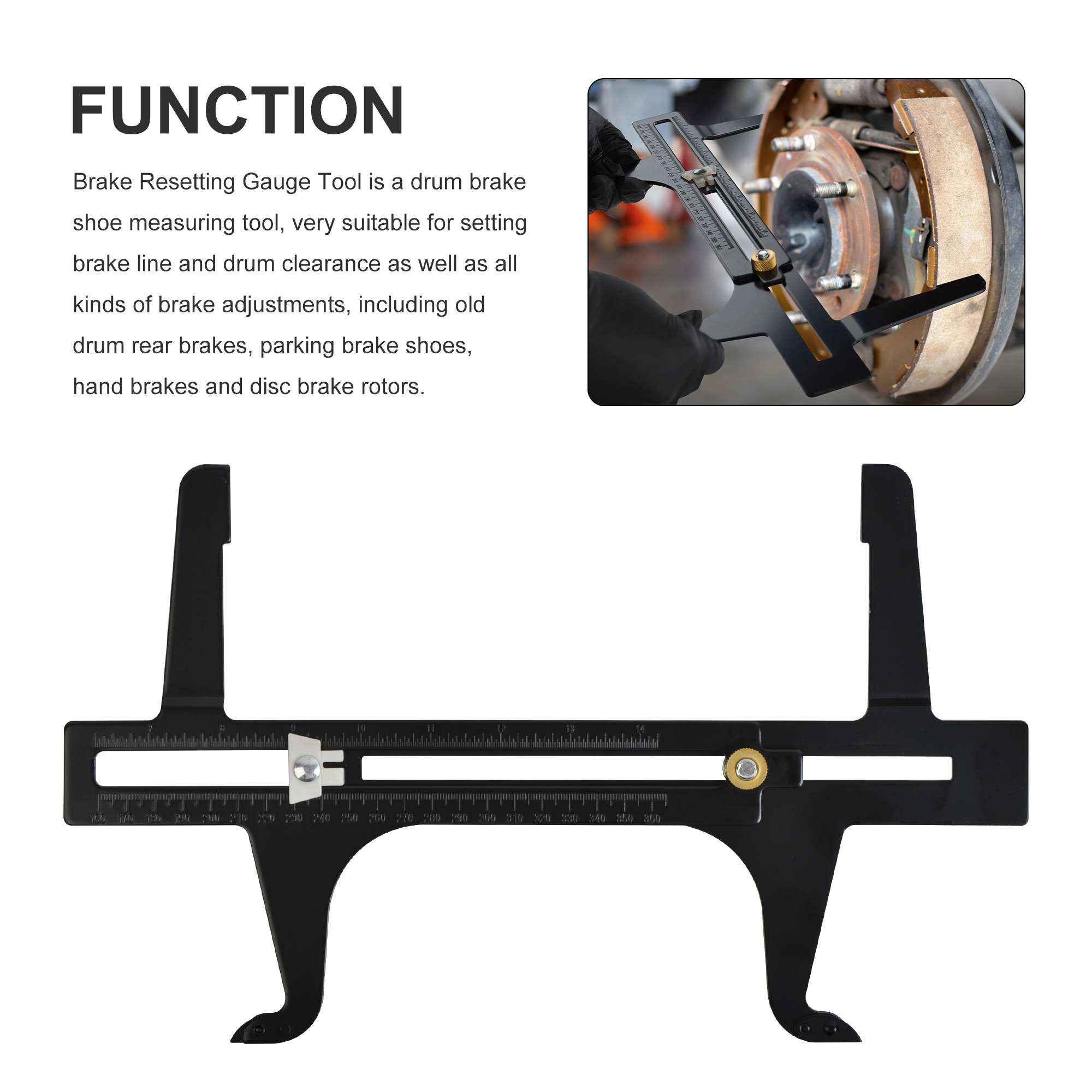

In traditional cognition, the brake drum gauge is only used to detect wear data, but WT04B4167 has broken through the single function and integrates measurement, calibration and adjustment, with a range of 160-360mm. It can not only accurately measure the inner diameter/outer diameter of the brake drum, but also quickly set the gap between the brake pad and the drum, and is even suitable for the rapid detection of disc brake discs. This "one ruler for multiple uses" feature makes it an all-round assistant for repair shops to deal with complex brake systems.
3. What scenarios are suitable for this product?
1) Repair shop/4S shop:
Quickly screen the brake drum status during daily maintenance to avoid safety hazards caused by missed inspections; accurately measure the repair data during overhaul to ensure that the brake system is restored to factory standards.
2) Modified car players:
Before upgrading the brake system, it is necessary to confirm whether the original brake drum is compatible with the new accessories, and the measuring ruler provides key data support.
3) Individual car owners:
With the tutorial video, car owners can check the health of their car's brake drum by themselves to avoid excessive repairs.
4. Product operation process
Step 1: Clean and position
Use the magnetic base to adsorb the tool on the wheel hub to avoid hand-held shaking.
Step 2: Double measurement

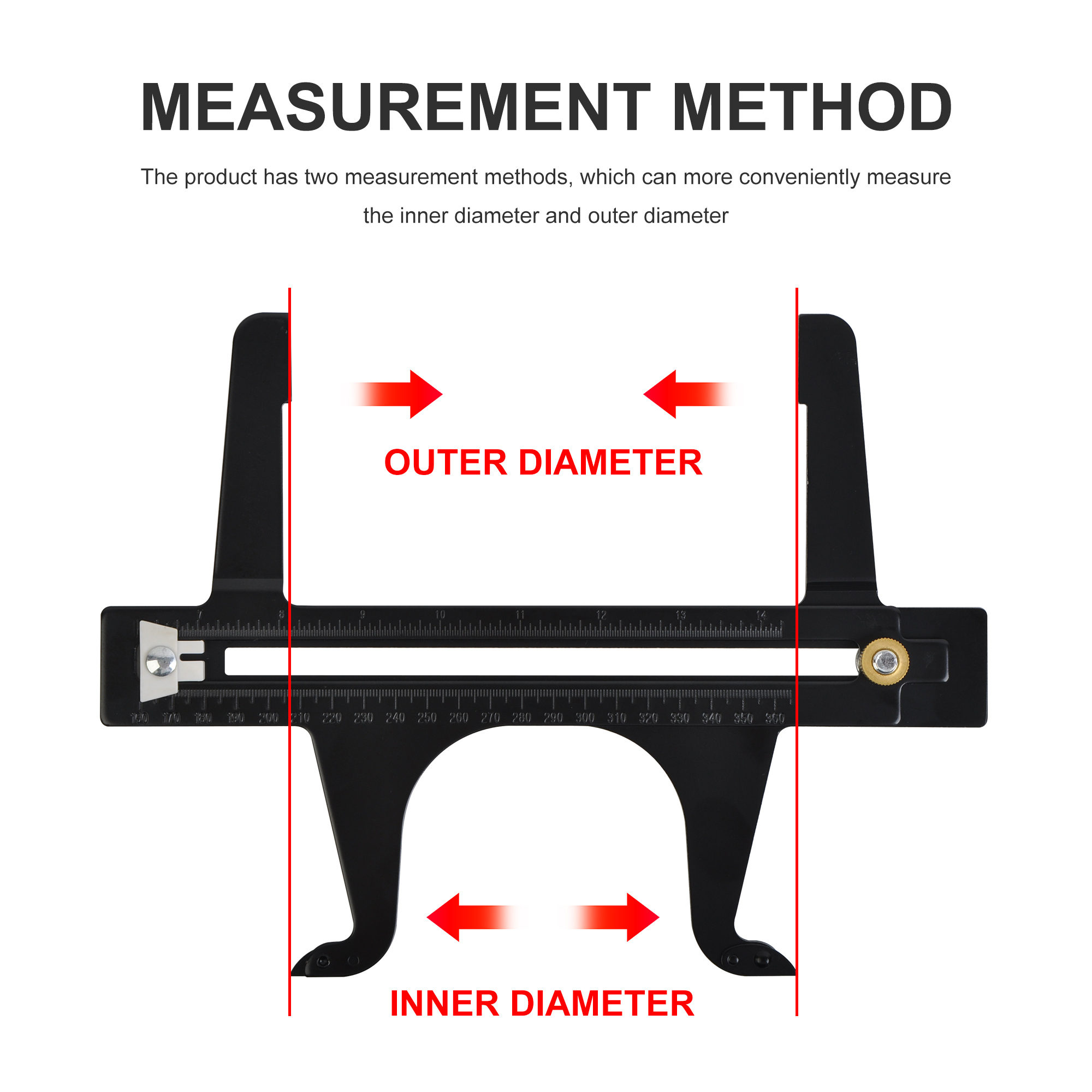

Inner diameter mode: The flat probe contacts the inner wall of the brake drum to read the wear data
Outer diameter mode: Flip the tool to measure the thickness of the brake disc and detect eccentric wear at multiple points

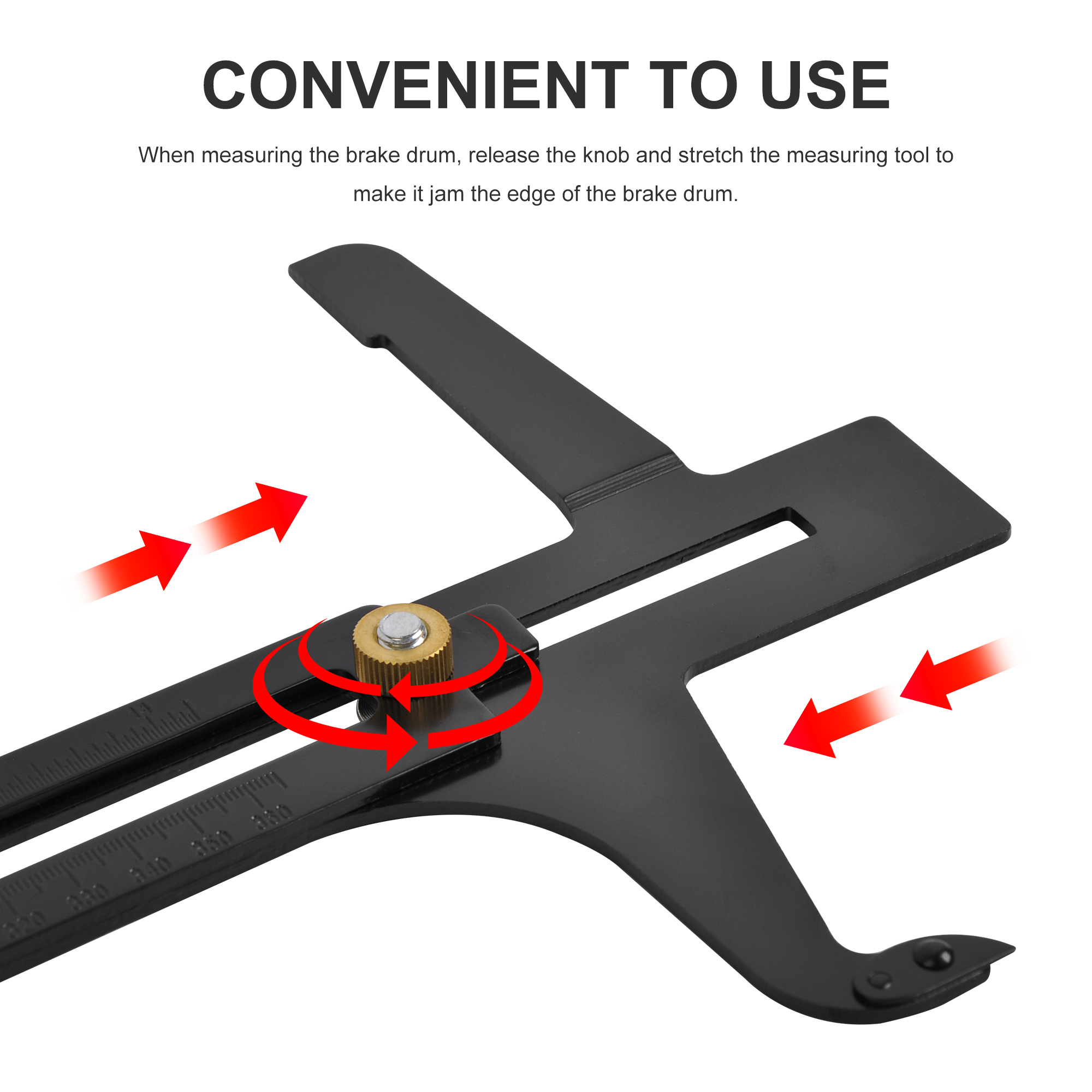

Step 3: Clearance setting
Insert the conical probe between the brake pad and the adjustment cam
Turn the knob until the scale shows the recommended clearance value (usually 2-3mm)
Directly lock the adjuster to complete the calibration
Step 4: Dynamic verification
After reinstalling the tire, test the brake pedal travel through a road test to ensure that there is no drag brake or braking force lag.
5.How should I choose a brake drum measuring ruler?
1) Material identification
Prioritize chrome vanadium steel body + tungsten carbide probe
Beware of "all plastic" cheap products, which are easily deformed at high temperatures
2) Functional verification
Test the smoothness of the knob: high-quality tools should be operable with one hand
Check the clarity of the scale: There is no blind spot in the reading under positive and reflective light environments
