Fiat 1.2 8V/1.4 16V Timing Tool Kit: Professional Engine Timing Maintenance

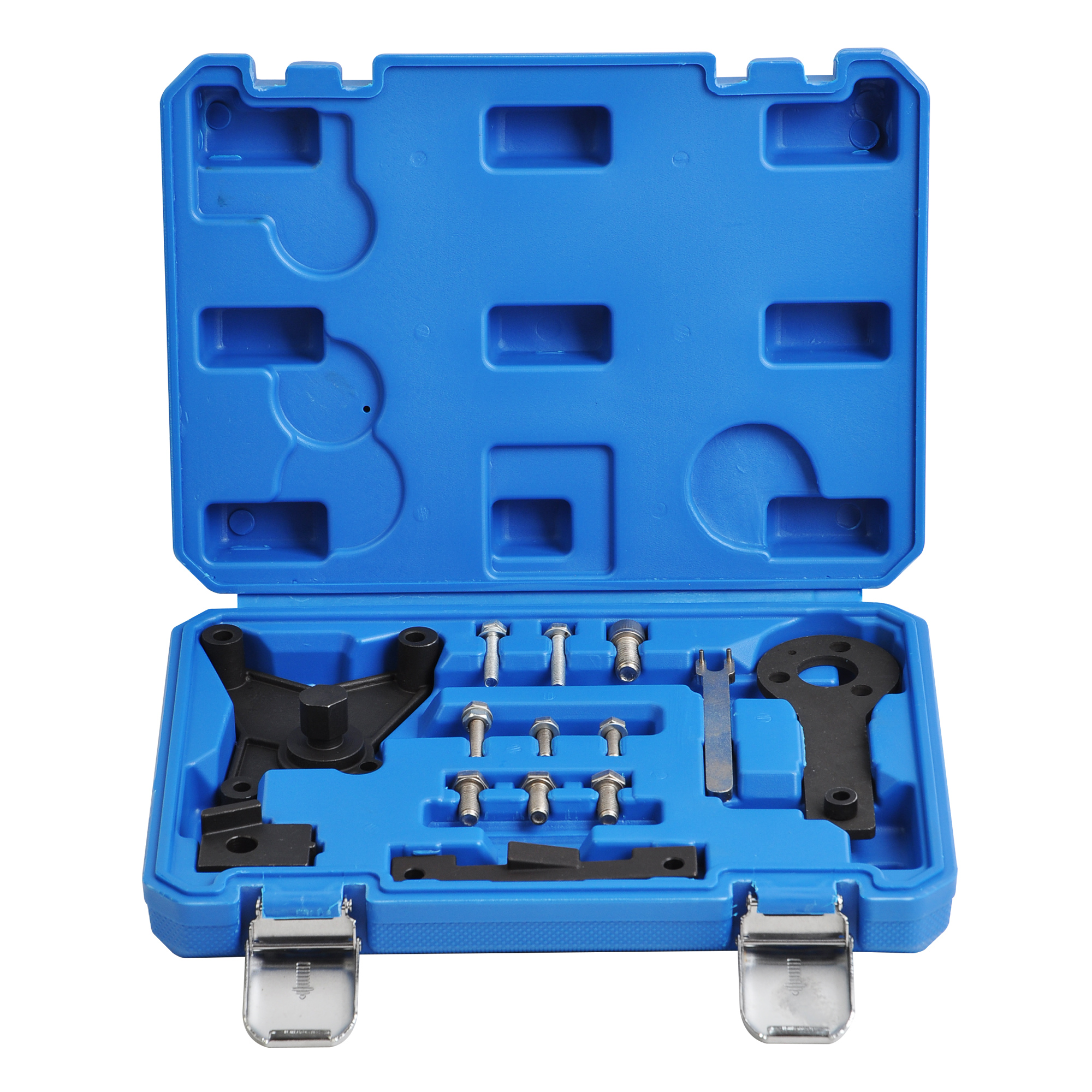

The 10-Piece Fiat 1.2 8V & 1.4 16V Timing Tool Kit is designed for precise maintenance of timing systems in Fiat, Ford, and Lancia vehicles. With professional engineering and OEM compatibility, it simplifies critical tasks like timing belt replacement, camshaft alignment, and crankshaft locking, ensuring efficient and safe repairs for both routine servicing and complex overhauls.
2. Key Applications
This tool kit is ideal for:
Timing Belt Replacement: Secures the crankshaft and camshaft to ensure proper alignment during installation.
Timing System Adjustment: Corrects issues like engine misfires, power loss, or warning lights caused by timing misalignment.
Engine Overhaul: Maintains timing component stability during cylinder head or crankcase disassembly.

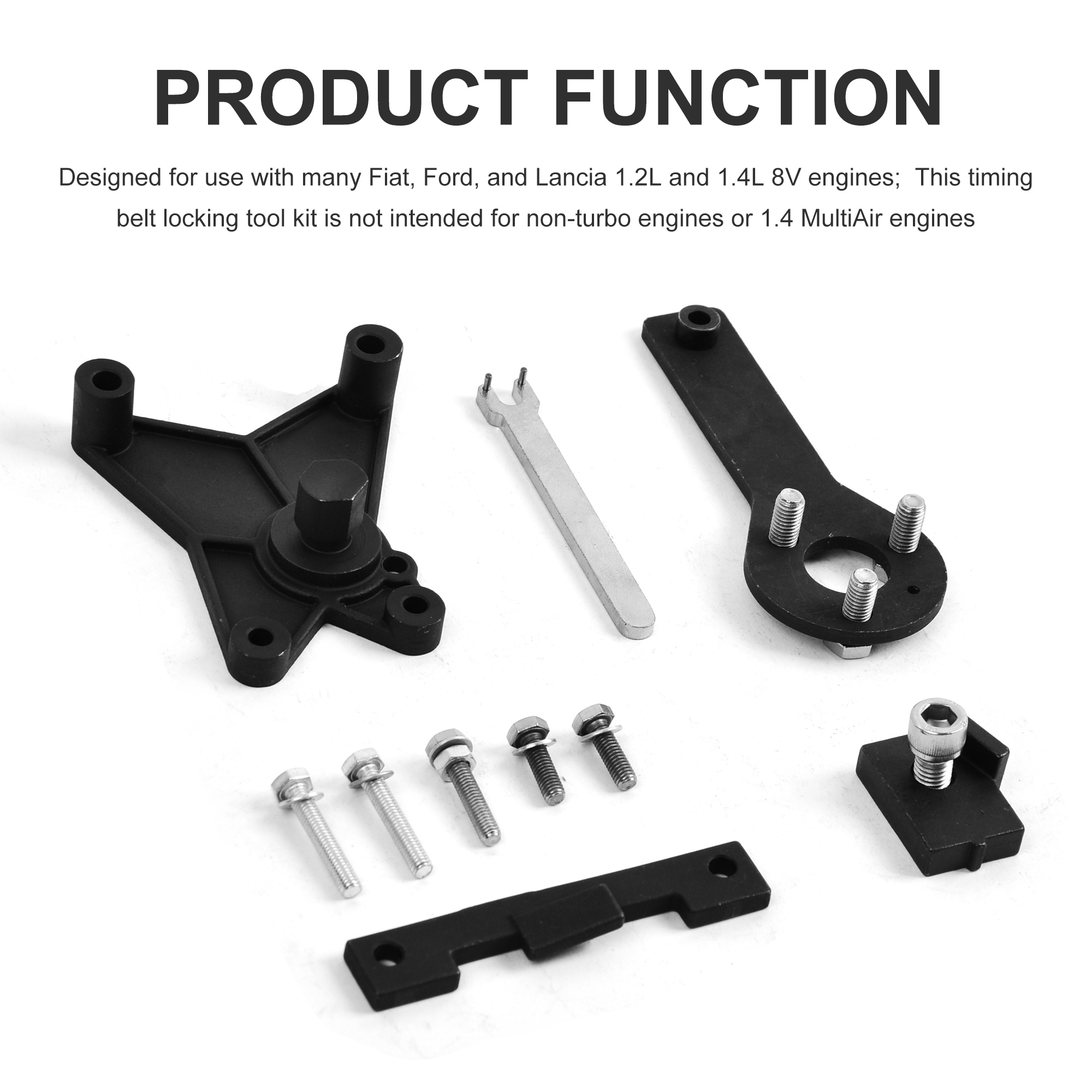

Compatible Models: Fiat Punto, Bravo; Ford Fiesta, Ka; Lancia Ypsilon (equipped with 1.2L 8V or 1.4L 16V engines).
Note: Not applicable to non-turbo engines or 1.4 MultiAir engines.
|

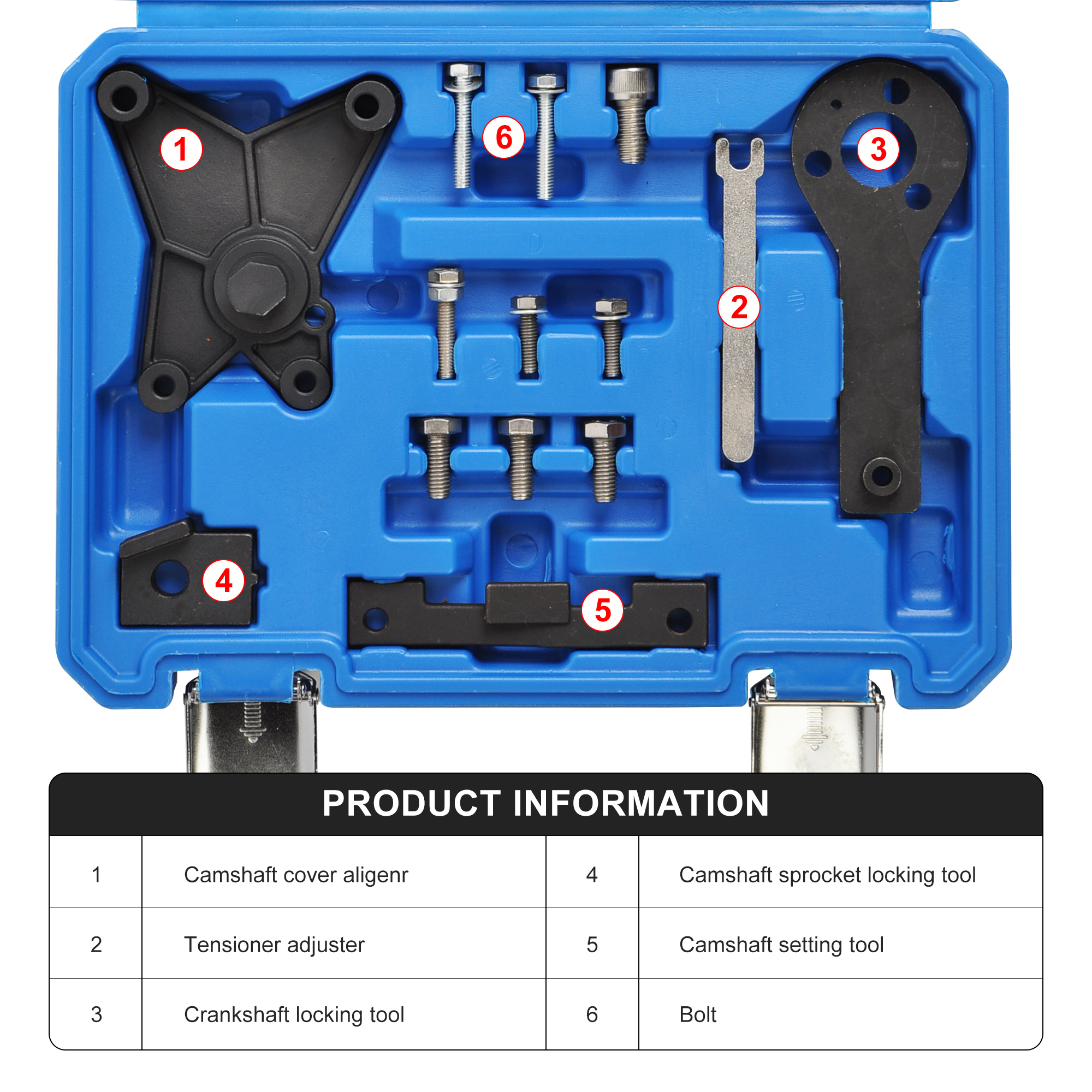

Tool |
Purpose |
|
Camshaft Cover Aligner |
Ensures precise alignment of the camshaft cover to prevent oil leaks. |
|
Tensioner Adjuster |
Adjusts timing belt tension to avoid slippage or excessive wear. |
|
Crankshaft Locking Tool |
Locks the crankshaft at Top Dead Center (TDC) for stable operations. |
|
Camshaft Sprocket Locking Tool |
Secures the camshaft sprocket to align timing marks accurately. |
|
Camshaft Setting Tool |
Fine-tunes camshaft angles for synchronization with the crankshaft. |
|
Specialized Bolts |
Provides secure attachment to engine-specific interfaces. |
1) Secure the Crankshaft:
Insert the Crankshaft Locking Tool into the engine block’s designated hole (near the crankshaft pulley) to lock it at TDC.
Verify compatibility using OEM codes (e.g., Fiat 2.000.004.500).
2) Lock the Camshaft:
Use the Camshaft Sprocket Locking Tool to fix the sprocket and align timing marks.
Adjust the camshaft angle with the Camshaft Setting Tool for synchronization.
3) Replace the Timing Belt:
Loosen the tensioner, remove the old belt, and install the new belt following timing marks.
Adjust tension using the Tensioner Adjuster (follow torque specifications or tool markings).
4) Verify & Test:
Rotate the crankshaft manually 2-3 times to confirm alignment.
Remove all locking tools and conduct an engine test run.
Summary
This 10-piece kit streamlines timing system maintenance with precision-engineered tools tailored for Fiat, Ford, and Lancia engines. Always refer to the vehicle’s service manual and confirm tool compatibility to ensure safe and effective repairs.
