The Ultimate Tool for Efficient Maintenance:Guide Rail Pin Puller for MERCEDES BENZ / BMW
When repairing cylinder heads of German engines such as Mercedes-Benz and BMW, the locking pins of the timing chain guide rails are often a "nightmare" for technicians. These pins, which are buried deep in holes and are subjected to high temperatures and high pressures, are very easy to rust and get stuck. Traditional methods (such as brute force knocking, welding and pulling) are not only time-consuming and laborious, but may also damage expensive cylinder castings. Now, this timing chain guide rail locking pin removal tool designed specifically for German engines has come into being, completely ending this maintenance pain point!
Core pain points, precise solutions:
Scenario: When replacing the timing rail, chain, or repairing the cylinder head, the cylindrical locking pin that fixes the rail needs to be removed.
Difficulty: The locking pin is deeply buried, rusted, and tightly engaged, and conventional tools are difficult to apply force or easy to slip off.
Risk: Violent disassembly can easily lead to pin breakage, thread damage, and even damage to the cylinder head body, and the maintenance cost soars.
Advantages of this tool:

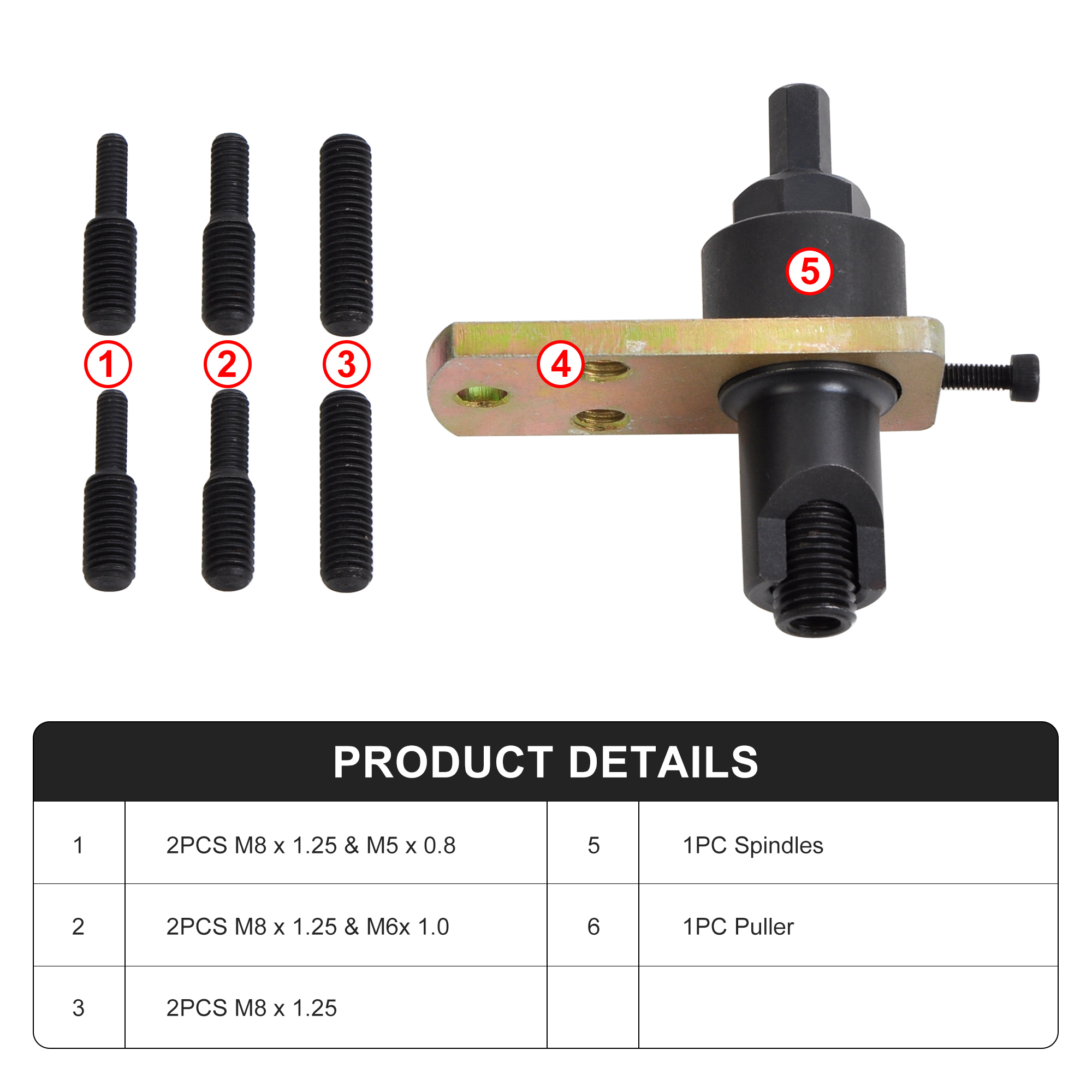

1. Scientific principle, non-destructive disassembly: Abandoning rough external force, the tool adopts the principle of spiral pulling. The core components include a sturdy spindle, a precise pin puller, and replacement bolts and fixing bolts suitable for different lock pin sizes. When operating, it is like a miniature hydraulic jack, generating a strong and controllable linear pulling force.
2. Save time and effort, double efficiency: Say goodbye to hours of hammering, cutting and frustration. Using this tool, even the most severely stuck lock pins can usually be safely and completely removed within a few minutes, significantly shortening the maintenance time and reducing the labor intensity of technicians.
3. Non-destructive disassembly, protecting the cylinder body: The uniform and controllable pulling force directly acts on the internal thread of the lock pin, avoiding impact, knocking or expansion damage to the cylinder head hole wall, maximizing the protection of the precision engine cylinder head, and eliminating secondary damage and additional maintenance costs caused by disassembly.

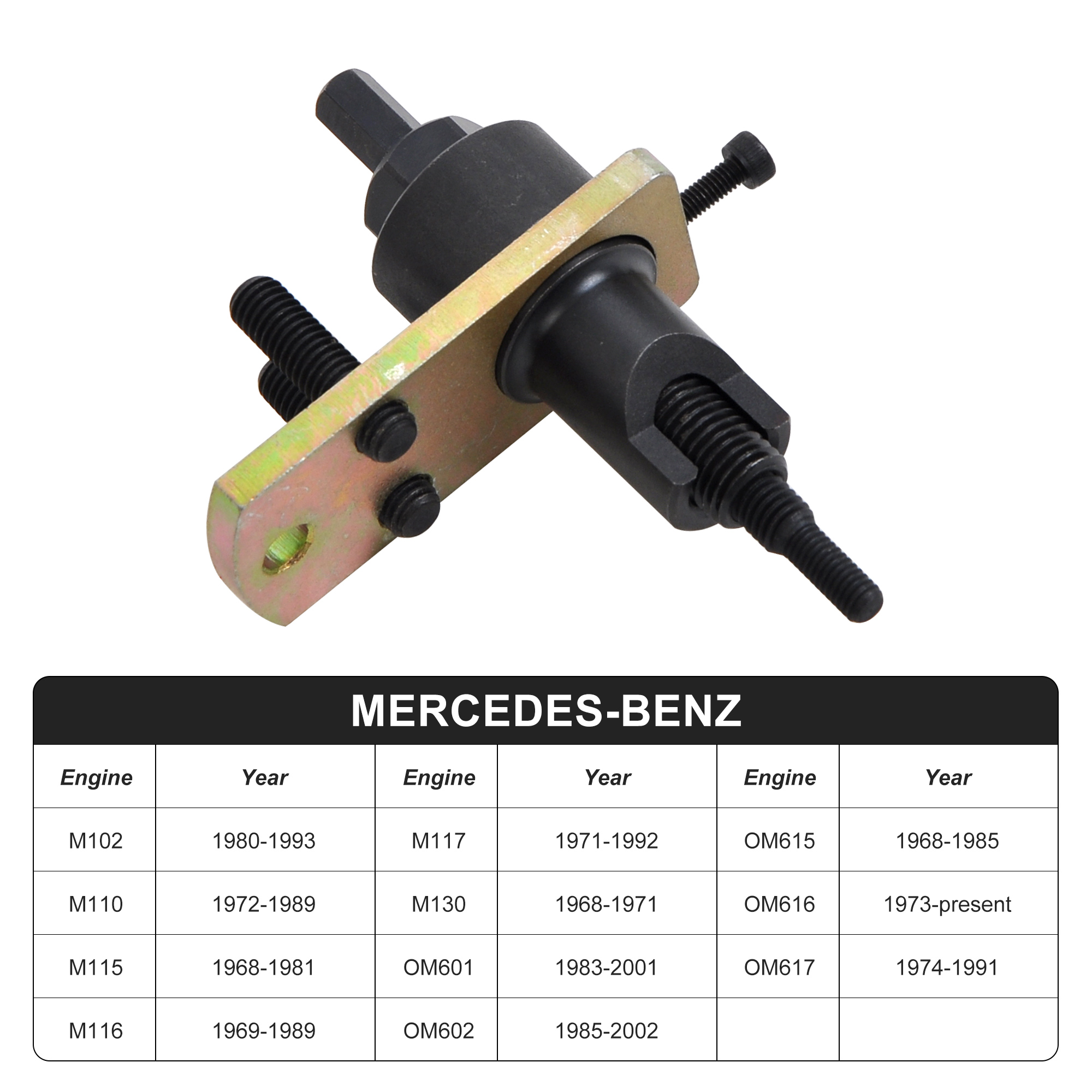

4. Widely compatible, one-box solution: The tool set contains replacement bolts of various specifications, perfectly covering the locking pin specifications of engines of mainstream German models such as Mercedes-Benz and BMW.
Tool operation steps:
Step 1: Select the adapter bolt - According to the thread specifications of the lock pin, select the corresponding replacement bolt in the tool kit and screw it into the threaded hole of the lock pin.
Step 2: Install the main frame - Put the main body of the pin puller on the replacement bolt, and use the fixing bolt to firmly lock the pin puller on the cylinder head plane (such as using adjacent threaded holes), ensuring that the force point is absolutely firm to avoid shaking.
Step 3: Tighten the spindle and pull with force - Insert the spindle into the center hole of the pin puller and tighten the spindle bolt. As the spindle continues to screw in, the huge and continuous pulling force it generates will smoothly pull the most stubborn lock pins out of the hole completely.
For professional repair shops or experienced technicians, this tool not only solves a specific problem, but is also a key investment to improve repair efficiency, ensure repair quality, and reduce overall costs. It can make the originally risky and cumbersome operation safe, controllable, and efficient, and is an essential professional tool for repairing the timing system of German engines such as Mercedes-Benz and BMW.
