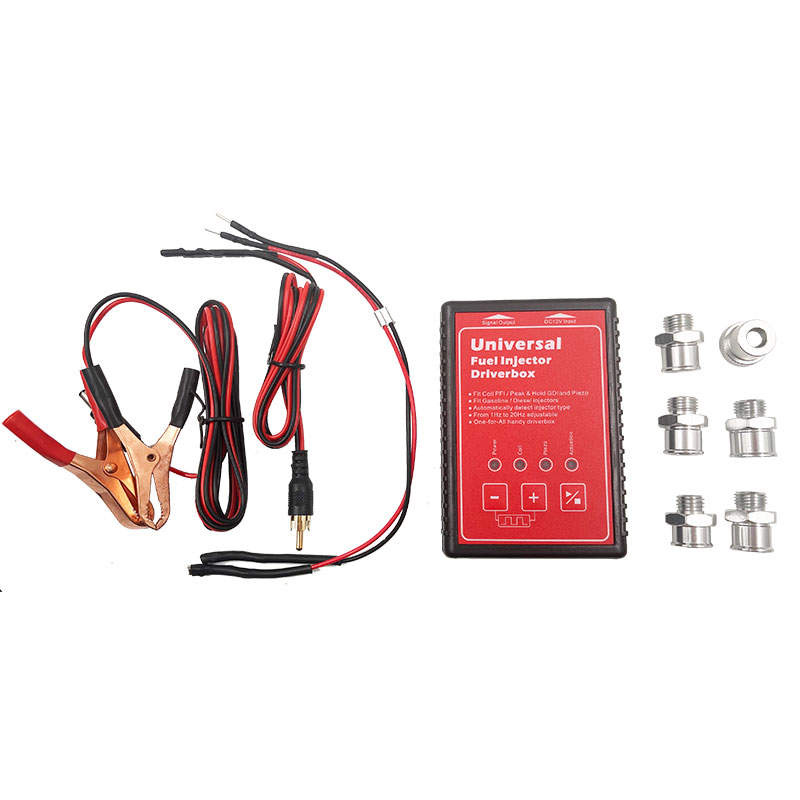

Universal Injector Test Kit

No.WT02Z9391

●Power supply: DC12V
●Current:1.0A
●Operating temperature: - 20 ~ 60oC
●Humidity: <85%
●Accessories:
Adapter x 6, Power cord x 1, Signal cord x 1,
A quick tool for testing the working conditions of single automotive fuel injectors.
Adapt to pre-injection automotive fuel injectors, as well as various GDI Peak&Hold and Piezo fuel injectors.
Automatically determine the type of fuel injector(Coil type/Piezo).
Power up by DC12V car battery.
Five speed patterns: 1, 2, 5, 10, 20Hz.
The kit comes with multiple adapters, for installing the GDI injectors on a regular fuel injector test bench to achieve capacity of testing the sprayability of all kinds of GDI injectors

GET A QUOTE

Description

Accessories:
Power Cord*1, Signal Cord*6, Jumper Cord*6,Φ15/15.8 Adap*6,Φ11.6 Adapter w/z O-ring*6,Φ11.6 Adapter*6, M12 Adapter*6, Φ10*20 Washer*6, Φ14*20 Washer*6, M6 Lead Thread*2, M6Locking Nuts*2, M8/10to M6*2
Adapt to all kinds of fuel injectors on the market, including low resistance, high resistance PFI,EFI,MPF etc., and GDI coil type(Peak&Hold), GDI piezoelectric type.
Peak&Hold GDI coil drive voltage¤t adjustable between 60-100Volts& 3-20Amps.
GDI piezoelectric drive voltage¤t adjustable between 100-170Volts& 3-20Amps.
power supply could be DC12V car battery, or a DC12V6A switch power(not included in the delivery).
Adjustable RPM and pulse width, supporting jog mode, standard mode, and variable speed testing.
Equipped with various adapter connectors and accessories,for installing the GDI injectors on a regular fuel injector test bench to achieve capacity of testing up to 6 injectors at the same time.
Requirement of the injector test bench:
- have Φ 13-13.5mm adapters.
- can build up oil pressure
