Description

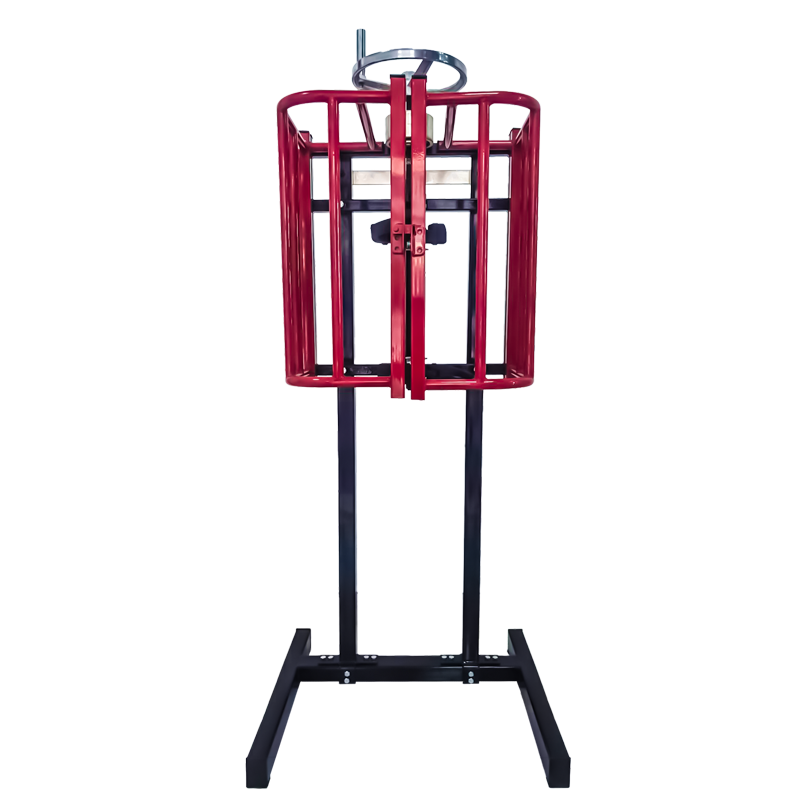

●This universal spring compressor with wide range covers most vehicle equipped with McPherson shock absorbers; armored vehicles, commercial vehicles, SUVs, and ambulances.
●This machine is equipped with active and passive safety systems: upper and lower spring latches & safety cage on the main body, ensure maximum safety for the user.

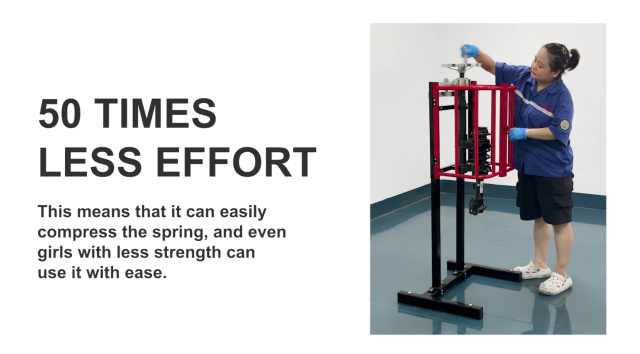

●This tool features manual operation, requiring no air or power supply. Its 1:5 torque multiplier mechanism makes compression easier and allows for better observation of the spring during the process.
●The quick-detach base which enables the spring compressor body to separate rapidly from the support frame. This allows the tool to be used directly without removing the shock absorber in certain repair scenarios, offering more flexibility.
Active and Passive Safety Systems:
+ Super-reinforced safety cage
+ Synchronized opening of both door with just one hand
+ Safe operation, keep hands away from spring.
Spring compression system:
+ It's specially designed to assemble and disassemble Macpherson springs at the front and rear axle of many different cars.
+ Features a heavy duty, shielded screw body for optimal strength and safety. Fully adjustable and very safe.
+ Universal moving jams (range of 100-265) covers very wind range of cars.
+ Special shape of the jams prevents the spring from moving.
+ Heavy duty tool, can be use with impact gun.
+ Specifications:
Screw with body (450 mm long)
Max clamp force: 2300 kgs
Jams range (100-265 mm)
Driver 24mm Hex
+ Covers many cars like: BMW,Toyota, Mitsubishi, VW, Audi, Saab, Nissan, Honda, Mazda,Subaru,Volvo,Opel,Porshe, Alfa Romeo, Chrysler, Citroen, Ford, Fiat, Hyundai, Kia, Land Rover, Peugeot, Renault, Seat, Suzuki, Toyota, Vauxhall.
Torque Multiplier:
Transmission ratio of the torque multiplier: 1:5
Product size:
+ LxWxH: 62*56*146cm
+ Net weight: 40kgs
